  • turbo actuator G-20 6NW009550 767649 For Audi VW

turbo actuator G-20 6NW009550 767649 for Audi VW

  • turbo model: G-20
  • part number:767649
  • oe number;6NW009550
  • Packing: Neutral packing
  • Disclaimer: Turboful is an independent company and is not affiliated with any of the manufacturers. All information are for references only. Products presented on this website are not to be confused with any of the products or trademarks of any OEM company. All parts listed to fit these manufacturers' models are replacement aftermarket parts unless stated. In no way is it implied that the products listed to fit these manufacturer’s models are original equipment parts, rather they are replacement aftermarket parts and accessories.
  • *Important* Above part number is for reference only.  Make sure your equipment is not machined. The most reliable way to make sure the model of turbocharger is finding the part number from the nameplate of your old turbocharger. You can sent us your photos with any questions or concerns, please feel free to contact us. Well get you back within 24 hours.
  • *Return Policy* If you have never installed a turbocharger before, we highly recommend having an experienced professional perform the installation. Turboful Inc. is not cover for damages to the turbocharger assembly or vehicle due to installation error.
  • *Warranty* Warranted to be free from defects and material and workmanship for a period of 30 days from the date on purchased. Damage due to transit, improper installation, misuse, field alterations, lack of maintenance, improper storage, neglect, accident, or any other reason of any description not under the control of the seller is excluded from this limited warranty.

Product Detail

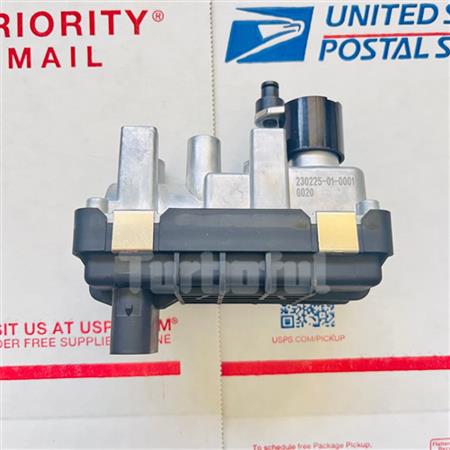

Turbo Electric Actuator G20 G-20 767649 6NW 009550



776470-1/3, 769909-7/9/10
For Audi Q7 Quattro 3.0 Tdi 3.0 Volkswagen Phaeton Touareg Tdi3.0


Product Description



Part Number 810587-5001S
Previous Version 810587-0001, 810587-0002 810587-5002S
OE Number 059145874M, 059 145 874 M, 059 145 874 MV, 059 145 874 MX, 059 145 874M, 059 145 874MV, 059 145 874MX, 059145874M, 059145874MV
Year 2011-16
Description Touareg TDI 240, Q7 240
CHRA N/A
Turbo Model GTB20V, GTB2056VZ
Engine Model CLZB, CLZE, CNRB, CPNB, CTCB, CTCC, CVWA, V6 TDI Tier 2 BIN5
Engine Manufacturer Volkswagen
KW 176/180/245
Fuel Diesel
Displacement 3.0L, 2967 ccm, V6 Cylinders

Bearing Housing (Oil Cooled)
Turbine Wheel (Ind. 42.07 mm, Exd. 46.95 mm, 9 Blades)
Comp. Wheel (Ind.42.23 mm, Exd. 56.30 mm, 6+6 Blades, Superback)
Actuator (Electric) SREA, G88 G-88, 767649, 6NW009550

Turbine Housing AR VNT




Applications

2011-16 Audi A6, A7, Q5, Q7 240 with CLZB, CLZE, CNRB, CPNB, CTCB, CTCC, CVWA Engine

2010-16 VW Touareg TDI 240 with CLZB, CLZE, CNRB, CPNB, CTCB, CTCC, CVWA Engine
