Product Detail

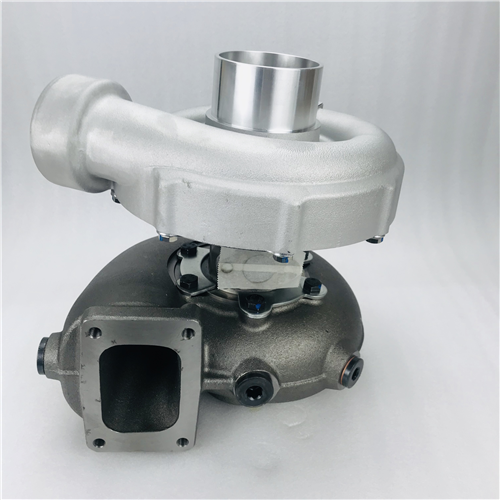

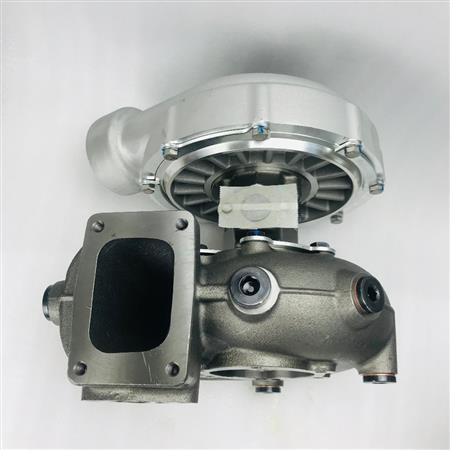

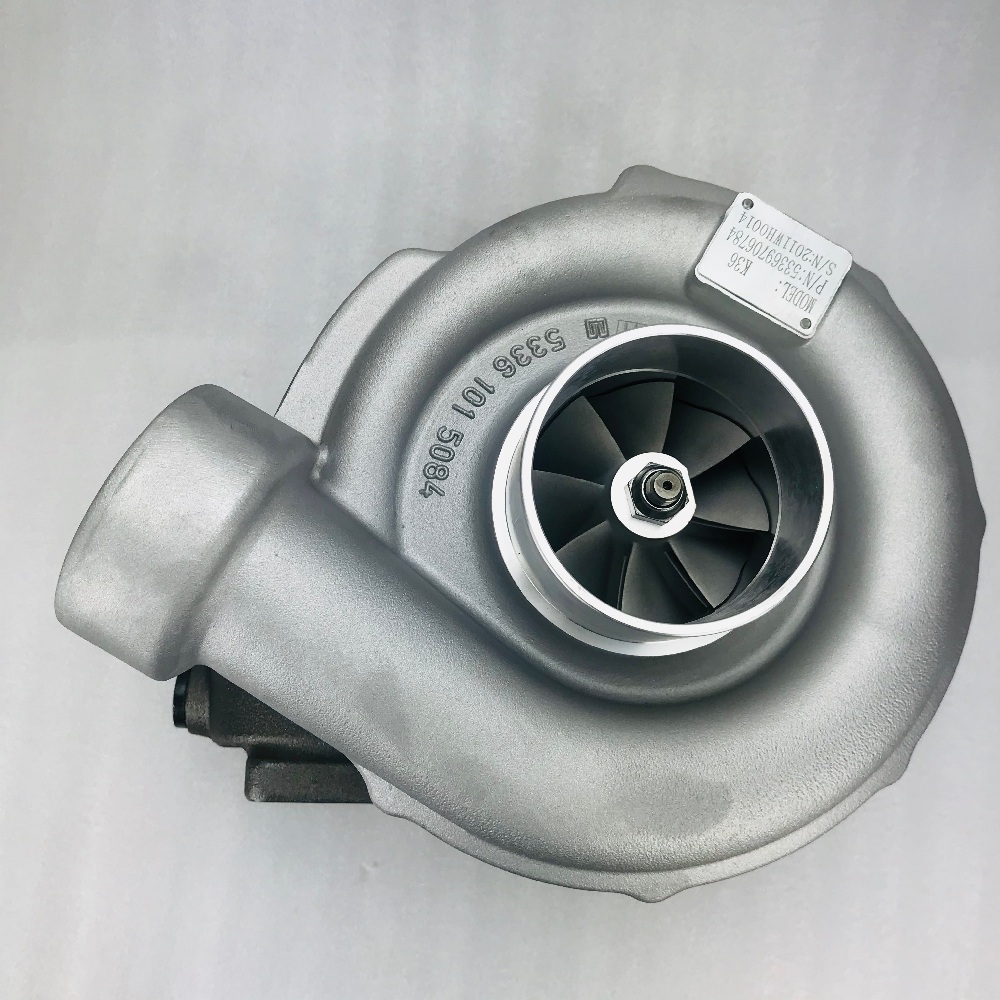

K365 turbo 53369706780 53369706784 53369706721 53369706722 OM444LA Mercedes Benz




Product details


Part Number 53369886803
Previous Part Number 5336-988-6803, 5336 988 6803
OE Number 0100961199, A0100961199
Comparison part no. 5336 988 6784, 5336 971 6784, 53369706803, 53369716803, 53369706721, 53369706722, 53369706778, 53369706784, 53369706798, 53369706799, 53369716784
Year 2008-11
Description GEN.SET Industrial Engine, Ship
Manufacturer Part Number 53369706803, 5336-970-6803
CHRA 53367100061 (5336-710-0061)
Turbo Model K36-4067MNB13.71GAAYB
Engine OM444LA
Engine Manufacturer Mercedes Benz
Displacement 21.93L, 21930 ccm
KW 234/342 HP
Fuel Diesel
RPM Max 1900
Angle α (compressor housing) 234/342º
Angle β (turbine housing) 0/41º
Bearing Housing 53331500004 (53331500003, 53331500001, 53341500002)(Oil Cooled)(1301036450)
Turbine Wheel 53361202119 (53361202104, 53361202109)(Ind. 81.05 mm, Exd. 96.5 mm, Trm 14.7, 12 Blades)(1301036437)
Comp. Wheel (hipped) 53361232027 (Ind. 68. mm, Exd. 101.9 mm, Trm 7.4, 7+7 Blades, Superback)
Back plate 53361515719
Heat shield Number 53341652000 (53361652001)(1301036340)
Repair Kit 53347110000 (1301036751)
Turbine Housing 53361006477
Turbine Housing AR 13
NOTE Intercooler, Right Side (53369716803), Left Side (53369706803)




Applications

2008-11 Mercedes Benz Industrial Engine, Ship with OM444LA Engine
