  •  K31 53319706701 53319886701 turbocharger for MAN Ship D0836LE401 D2848LE403 Engine

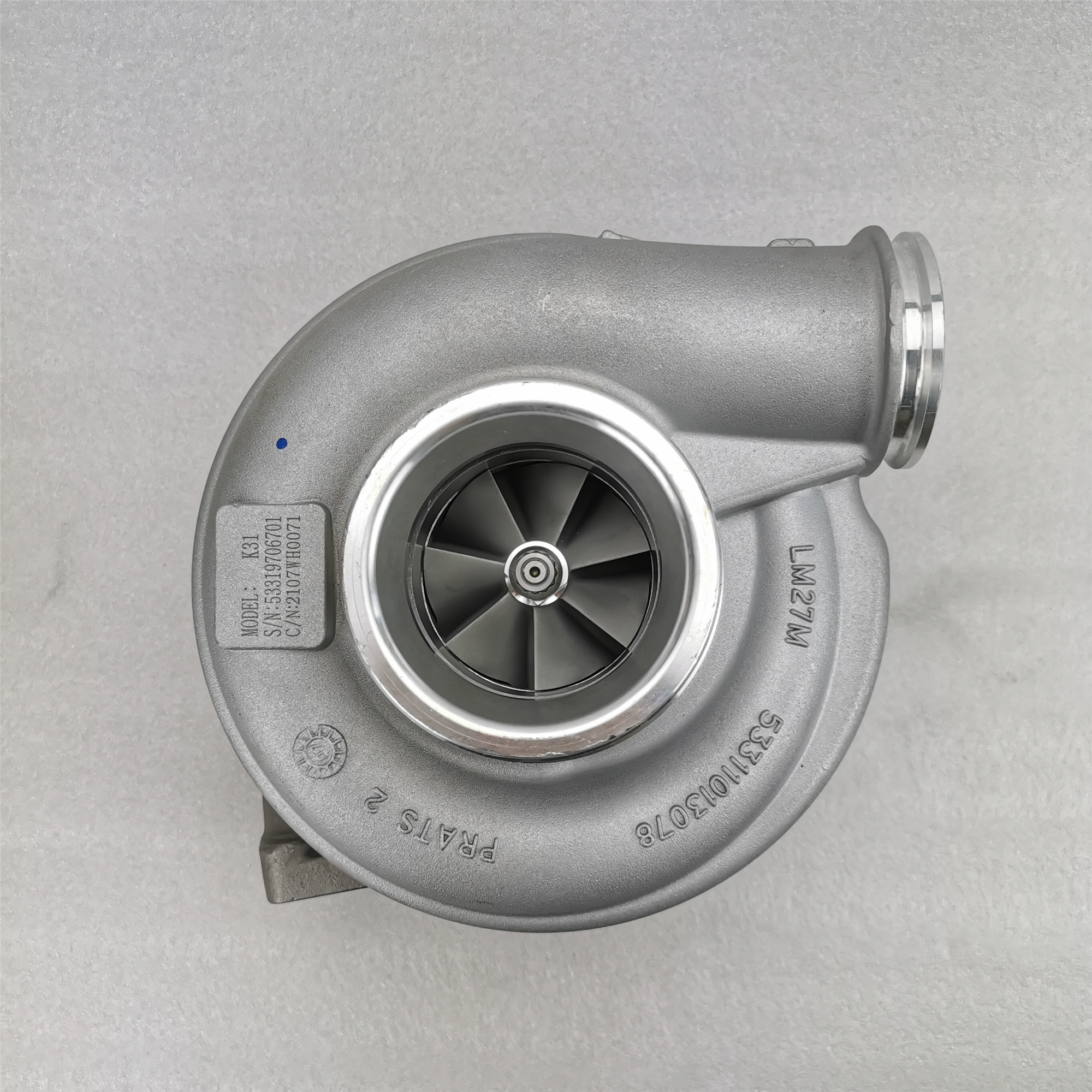

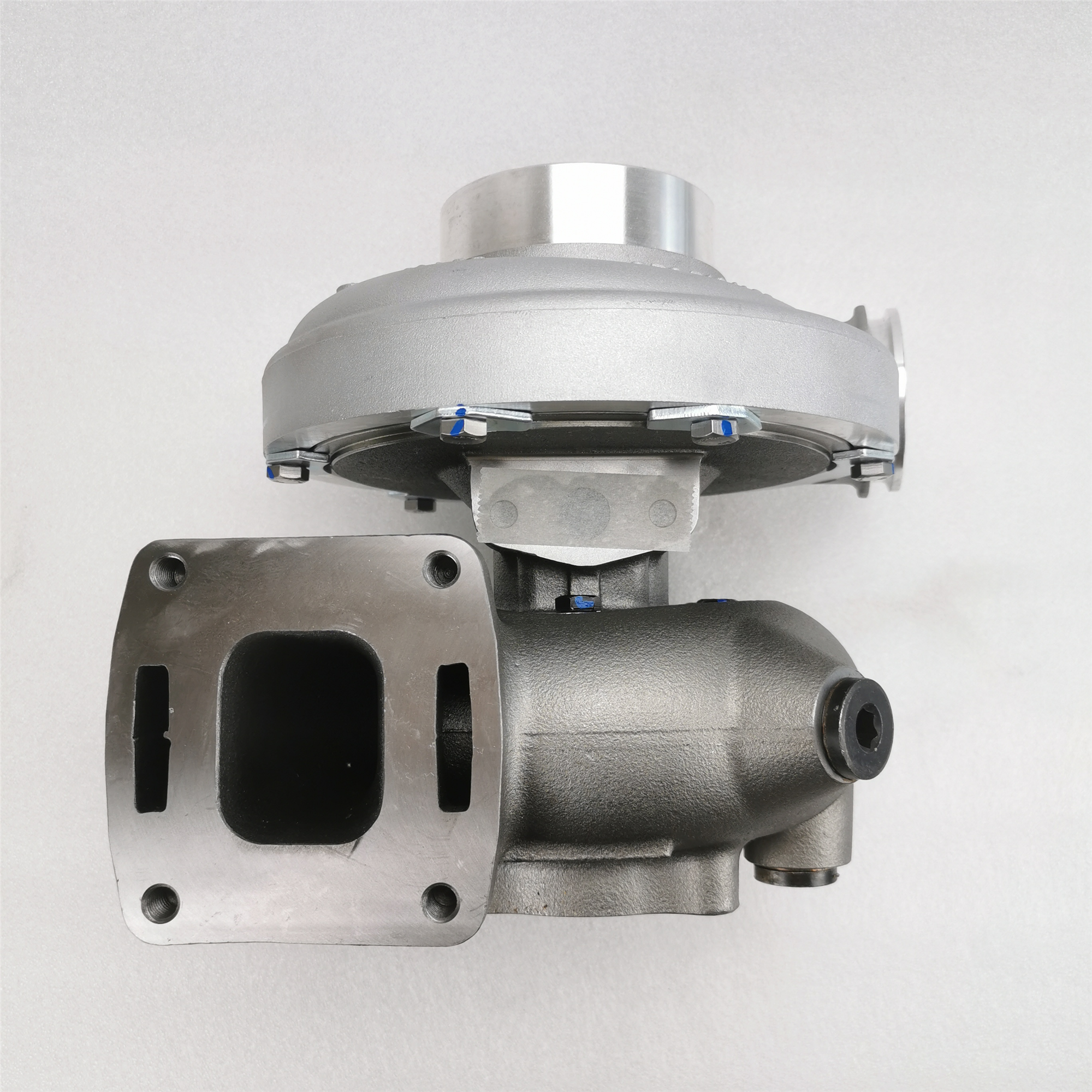

K31 53319706701 53319886701 510910075797 Turbocharger for MAN Ship D0836LE401 D2848LE403 Engine

  • K31 53319706701
  • part number : 53319706701 53319886701 5331-988-6701, 5331 988 6701
  • Manufacturer Part Number : 53319716701, 53319706701, 5331-971-6701, 5331-970-6701, 5331 970 6701
  • OE number :51091007638, 51.09100-7579, 51.09100-75797, 51.09100-7396, 510910075797, 51091007396, 51.09100-7638
  • Displacement : 6.87/14.62L, 6870/14620 ccm
  • engine: D0836LE401, D2848LE403
  • TURBO MODEL: K31 K31-3767OOAKB9.71RYAXB
  • Disclaimer: Turboful is an independent company and is not affiliated with any of the manufacturers. All information are for references only. Products presented on this website are not to be confused with any of the products or trademarks of any OEM company. All parts listed to fit these manufacturers' models are replacement aftermarket parts unless stated. In no way is it implied that the products listed to fit these manufacturer’s models are original equipment parts, rather they are replacement aftermarket parts and accessories.
  • *Important* Above part number is for reference only.  Make sure your equipment is not machined. The most reliable way to make sure the model of turbocharger is finding the part number from the nameplate of your old turbocharger. You can sent us your photos with any questions or concerns, please feel free to contact us. Well get you back within 24 hours.
  • *Return Policy* If you have never installed a turbocharger before, we highly recommend having an experienced professional perform the installation. Turboful Inc. is not cover for damages to the turbocharger assembly or vehicle due to installation error.
  • *Warranty* Warranted to be free from defects and material and workmanship for a period of 30 days from the date on purchased. Damage due to transit, improper installation, misuse, field alterations, lack of maintenance, improper storage, neglect, accident, or any other reason of any description not under the control of the seller is excluded from this limited warranty.

Product Detail

Product Description

Part Number 53319886701
Previous Version 5331-988-6701, 5331 988 6701
OE number 51091007638, 51.09100-7579, 51.09100-75797, 51.09100-7396, 510910075797, 51091007396, 51.09100-7638
Description Ship
Manufacturer Part Number 53319716701, 53319706701, 5331-971-6701, 5331-970-6701, 5331 970 6701
CHRA 53317100004 (5331-710-0004)
Turbo Model K31-3767OOAKB9.71RYAXB
Engine D0836LE401, D2848LE403
Displacement 6.87/14.62L, 6870/14620 ccm
KW 331/450/588/800
RPM 2600
Fuel Diesel
Angle α (compressor housing) 315°
Angle β (turbine housing) 100°
Bearing Housing 53311500004 (Oil cooled)(1900011255)
Turbine Wheel 53311205015 (53311205005, 53311205025)(Ind. 71.96 mm, Exd. 85.73 mm, 12 Blades)
Comp. Wheel 53311232004 (53311232014)(Ind. 63.6 mm, Exd. 94.92 mm, Trm 12.6, 7+7 Blades, Superback)
Back plate 53291523001 (53291523003)
Heat shield Number 53311652001 (206310001)
Repair Kit 53317110005 (53317110003)(1301031750)
Turbine Housing (water-cooled) 53311006400
Compressor Cover 53331013003
Turbine Housing AR 9
Gasket (turbine inlet) 210294 (Inox Steel)
Gasket (turbine Outlet) 210652 (Inox Steel)
Gasket (oil outlet) 210060 (409267-0003, 409267-0002, 201048, 129120, 210018-0000, 210060-0000, 1S4810, 51914, 148062, 9738, 9988, 3519763, 3500682, 3709738, 311585)(1900000025)
Gasket (oil outlet) 210060 (409267-0003, 409267-0002, 210060-0000, 51914, 148062, 311585, 860105)
NOTE Intercooler, restricted to Daimler Chrysler



Applications

 1998-12 turbocharger for MAN Ship with D0836LE401, D2848LE403 Engine
