Garrett 860777-5003S G-Series G40-900 Super Core No Turbine Housing

  • Garrett 860777-5003S G-Series G40-900 Super Core No Turbine Housing
  • Disclaimer: Turboful is an independent company and is not affiliated with any of the manufacturers. All information are for references only. Products presented on this website are not to be confused with any of the products or trademarks of any OEM company. All parts listed to fit these manufacturers' models are replacement aftermarket parts unless stated. In no way is it implied that the products listed to fit these manufacturer’s models are original equipment parts, rather they are replacement aftermarket parts and accessories.
  • *Important* Above part number is for reference only.  Make sure your equipment is not machined. The most reliable way to make sure the model of turbocharger is finding the part number from the nameplate of your old turbocharger. You can sent us your photos with any questions or concerns, please feel free to contact us. We’ll get you back within 24 hours.
  • *Return Policy* If you have never installed a turbocharger before, we highly recommend having an experienced professional perform the installation. Turboful Inc. is not cover for damages to the turbocharger assembly or vehicle due to installation error.
  • *Warranty* Warranted to be free from defects and material and workmanship for a period of 30 days from the date on purchased. Damage due to transit, improper installation, misuse, field alterations, lack of maintenance, improper storage, neglect, accident, or any other reason of any description not under the control of the seller is excluded from this limited warranty.

Product Detail

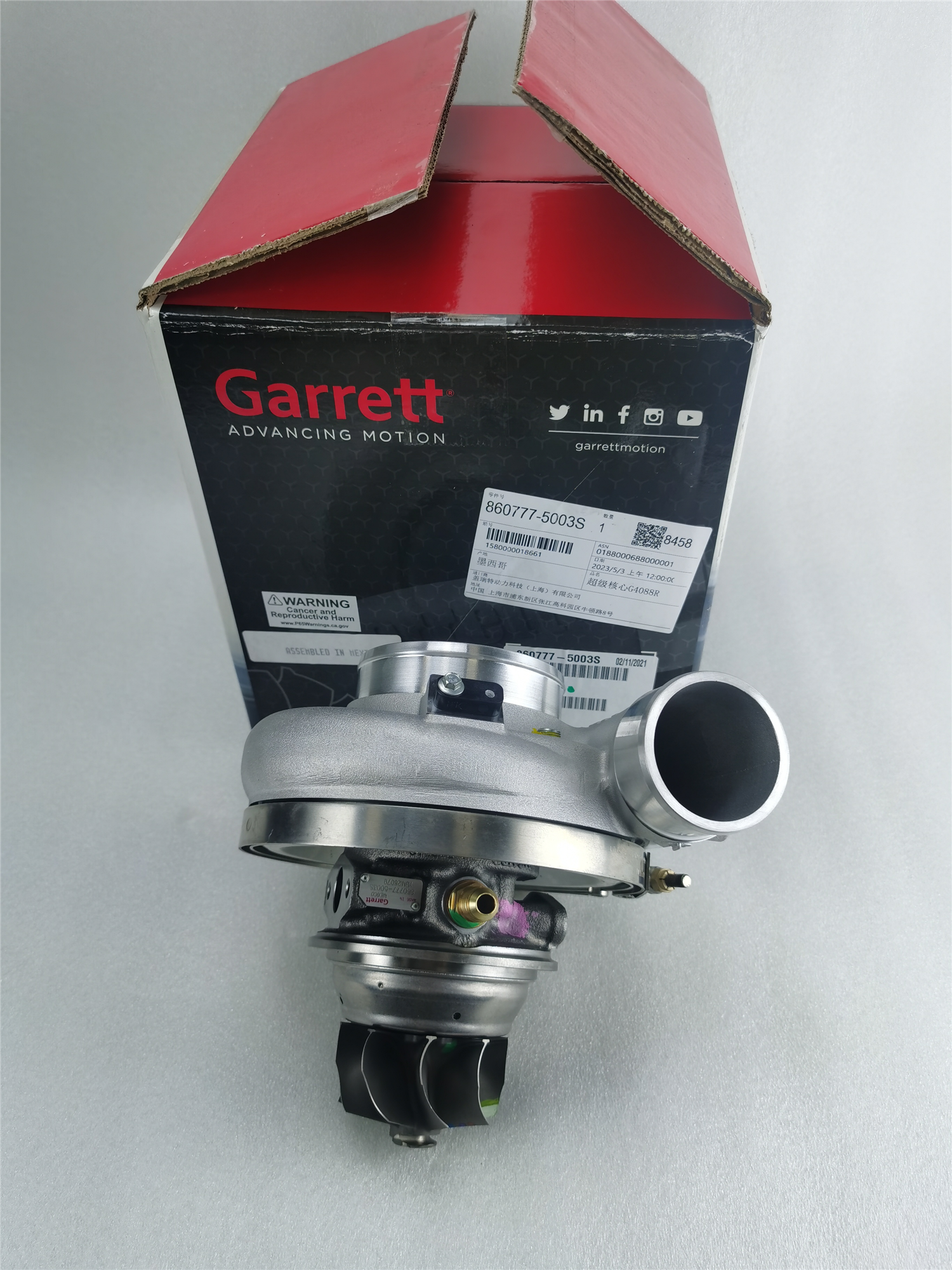

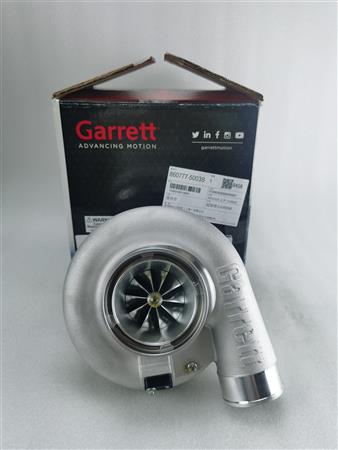

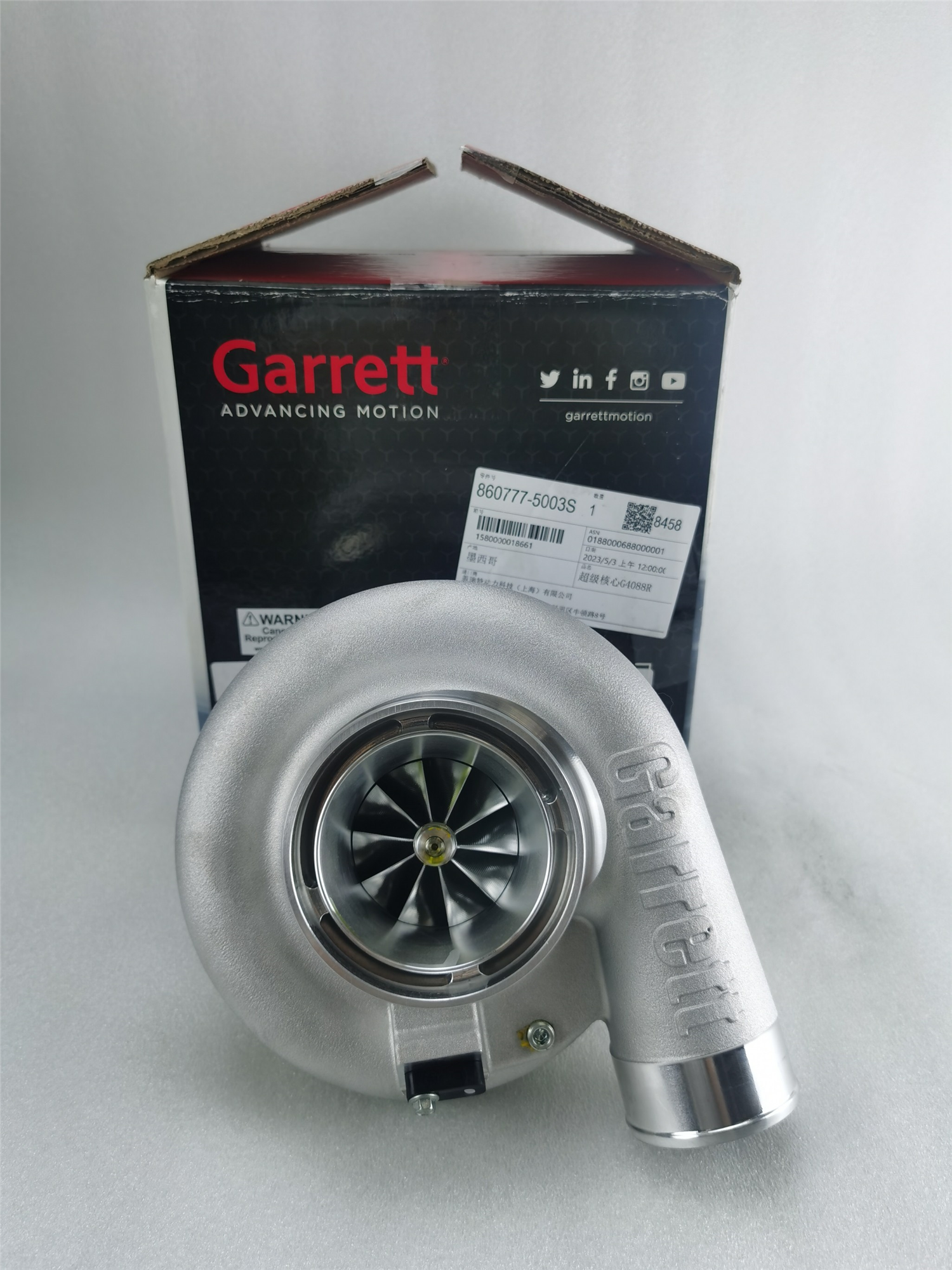

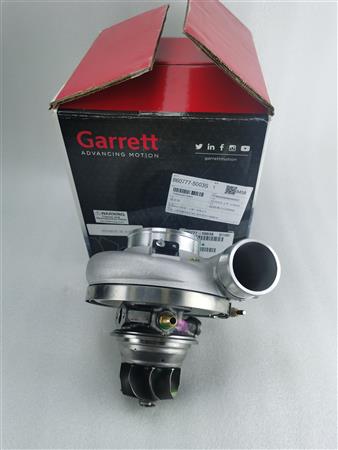

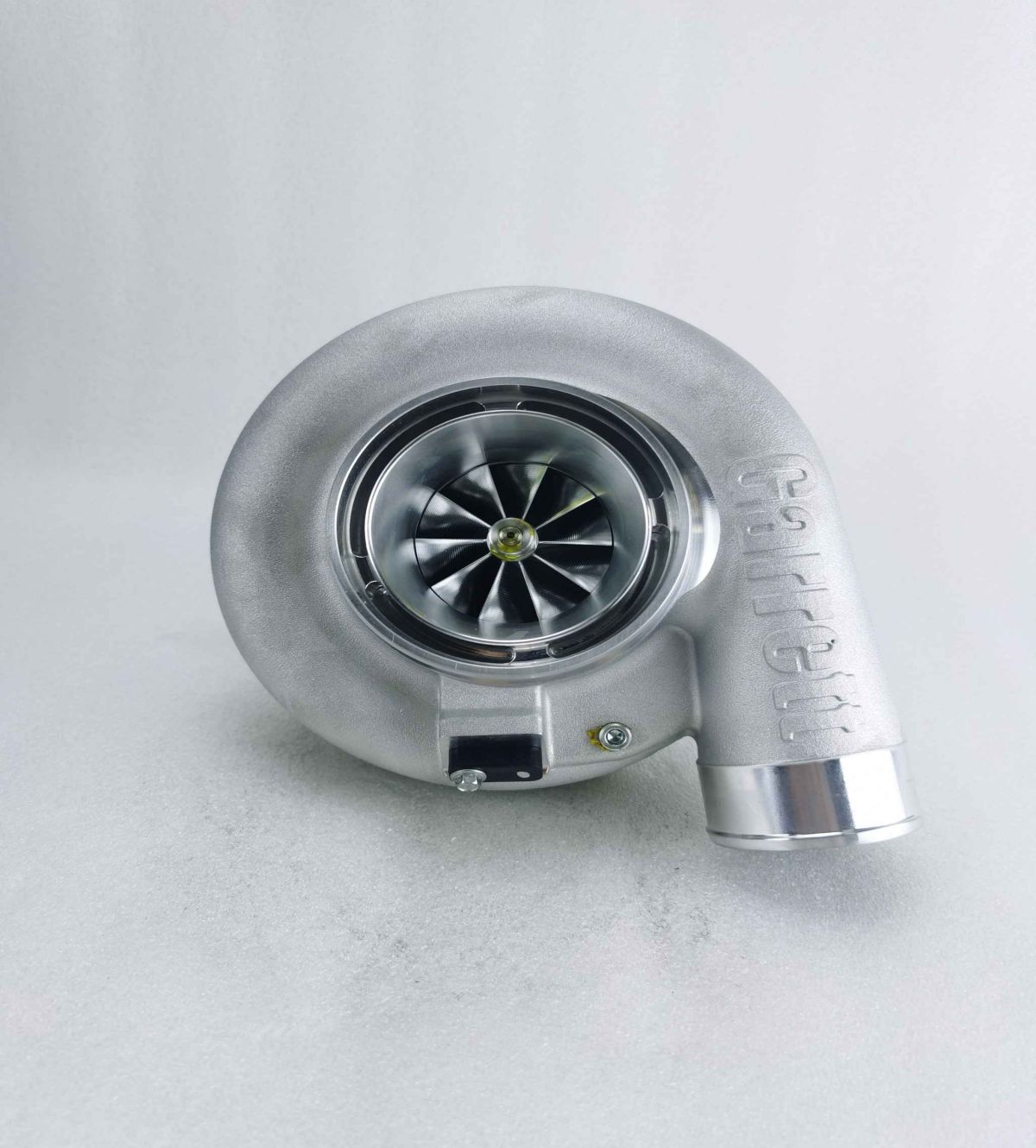

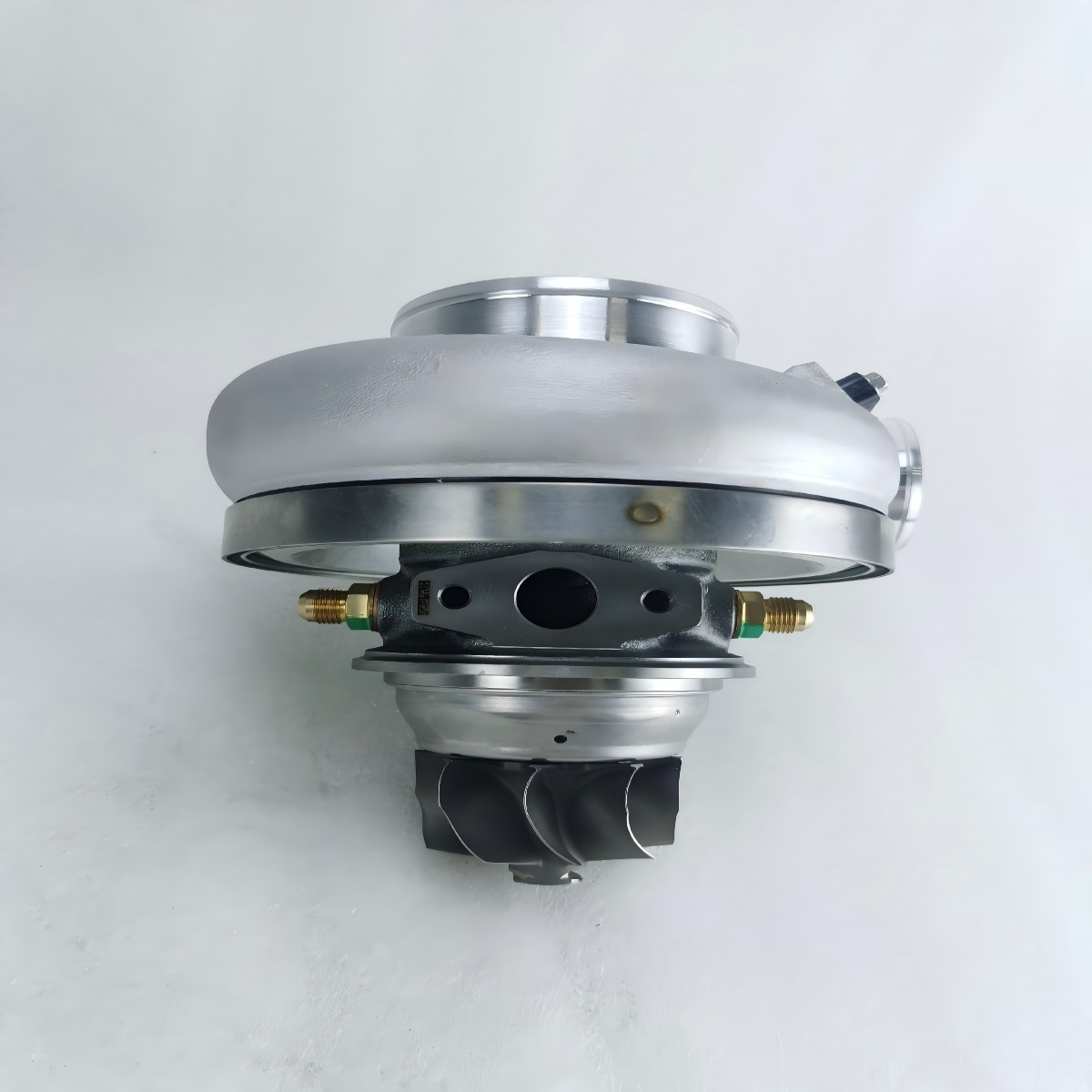

Garrett 860777-5003S G-Series G40-900 Super Core No Turbine Housing




Garrett G-Series G40-900 Supercore, with 62mm Inducer Compressor Wheel HP: 500-900 Engine Displacement: 2.0L-6.0L



Compressor: Inducer size 62mm, Exducer size 88mm, Trim 51 A/R 0.80 Turbine: Inducer size 77mm, Exducer 70mm, Trim84

G Series compressor aero increases flow up to 32% (compared to GTX4088R) 62mm compressor inducer size  Dual ceramic ball bearing with steel cages

G Series turbine aero increases flow 16% (compared to GTX4088R)

 Inconel turbine wheel with 77mm inducer flows up to 43 lbs/min

Lightweight aluminum backplate

Fully machined speed sensor and pressure ports

Water fittings included with super core

Stainless steel turbine housings available with T4 twin scroll inlet



T4 turbine housing outlet V-Band dimension (117.4mm | 4.622OD) is equal to existing GTX42, GTX45 and G42 models G40 Turbine Housing Kit Options Part Number A/R Inlet Outlet Wategate Divided 757707-0027 0.85 V-Band V-Band Free Float N 757707-0028 0.95 V-Band V-Band Free Float N 757707-0029 1.06 V-Band V-Band Free Float N 757707-0030 1.19 V-Band V-Band Free Float N 757707-0032 0.85 T4 T4 Free Float Y 757707-0033 0.95 T4 T4 Free Float Y 757707-0034 1.06 T4 T4 Free Float Y 757707-0035 1.19 T4 T4 Free Float Y Super core and turbine kit sold individually.
