  • S4D turbo 168665 130-5469 1305469 0R7075

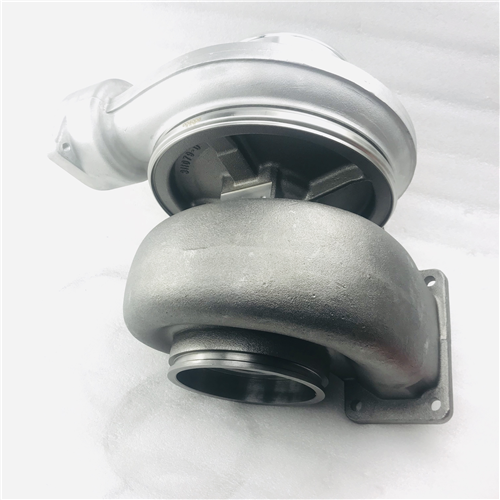

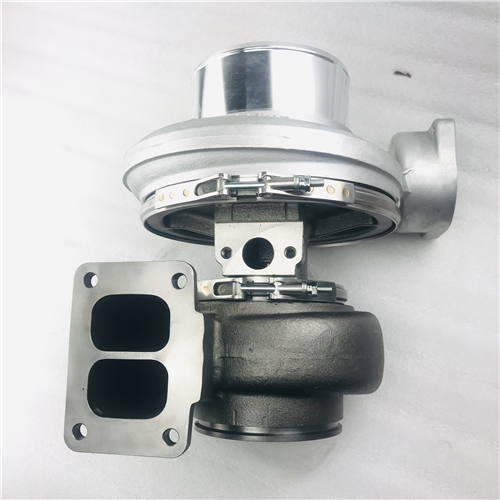

S4D turbo 168665 130-5469 1305469 0R7075 for 1995-10 Caterpillar Industrial, Truck (Off-Highway) with 3406C Engine

  • 168665 130-5469 1305469 0R7075 for Caterpillar
  • Disclaimer: Turboful is an independent company and is not affiliated with any of the manufacturers. All information are for references only. Products presented on this website are not to be confused with any of the products or trademarks of any OEM company. All parts listed to fit these manufacturers' models are replacement aftermarket parts unless stated. In no way is it implied that the products listed to fit these manufacturer’s models are original equipment parts, rather they are replacement aftermarket parts and accessories.
  • *Important* Above part number is for reference only.  Make sure your equipment is not machined. The most reliable way to make sure the model of turbocharger is finding the part number from the nameplate of your old turbocharger. You can sent us your photos with any questions or concerns, please feel free to contact us. Well get you back within 24 hours.
  • *Return Policy* If you have never installed a turbocharger before, we highly recommend having an experienced professional perform the installation. Turboful Inc. is not cover for damages to the turbocharger assembly or vehicle due to installation error.
  • *Warranty* Warranted to be free from defects and material and workmanship for a period of 30 days from the date on purchased. Damage due to transit, improper installation, misuse, field alterations, lack of maintenance, improper storage, neglect, accident, or any other reason of any description not under the control of the seller is excluded from this limited warranty.

Product Detail







Part Number

168665

OE number

130-5469, 1305469, 0R7075

Description

Industrial Engine, Truck (Off-Highway)

Turbo Model

S4DS-114H55DAXM/1.58VT97H1

CHRA

199763 (169411, 1411468, 0R6606, 6I0745, 178245)(Use 178170)

Engine Model

3406C (773 & 775)

kW

313/425 HP

Rpm

1900

Fuel

Diesel

Displacement

14.6L, 3406 ccm

Cold Planer

PM-465

Machine Engine

3406, 3406B, 3406C

Generator Set Engine

3406B, 3406C, SR4, 3406C

Generator

SR4

Industrial Engine

3406B, 3406C, 3412E, HT400

Road Reclaimer

RM-350, RM-350B, RM-350B, SM-350

S/N

41Z257-UP, 41Z4926-UP, 41Z21009-UP, 41Z2438-99999, 1LS1-UP, 4ZR1-UP, 8FS1-1026, 6TB18056-UP

Bearing Housing

199765 (Oil Cooled)

Turbine Wheel

199796 (6I1193)

Comp. Wheel

169410 (1411469)(Ind. 81.3 mm, Exd. 109.2 mm, 6+6 Blades, Superback)

Insert plate

197651 (142066, 51135, 5S4556, 49162-22500, 52321523000, 52321523001, 143044-0000)(1250403300)

Repair Kit

318408 (318406, 166047)(1252419755)

Turbine Housing

168666 (1305470)

Compressor Cover

199503 (1017769)

Turbine Housing AR

1.58

Gasket oil inlet

409039-0000 (409039-0001, 210019, 312617, 2405022, 7C7431)(1900000006)(Inox Steel)

Gasket (oil outlet)

210018 (3519763, 129120, 210018-0000,

Applications

1995-10 Caterpillar Industrial with 3406C Engine
